Item

       PH4

         PH 5

           PH 6

Module parameter

Pixel pitch

4mm

5mm

6mm

Pixel configuration

1R1G1B

1R1G1B

1R1G1B

LED type

SMD2020

SMD3528

SMD3528

Module resolution

32dots*32dots

32dots*32dots

32dots*16dots

Module size

128mm*128mm

160mm*160mm

192mm*96mm

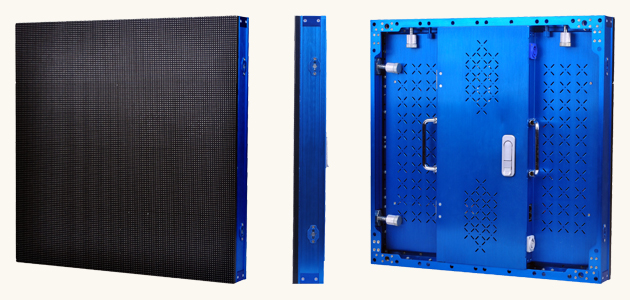

Cabinet parameter

Cabinet resolution

128dots*128dots

128dots*128dots

96dots*96dots

Cabinet size

512mm*512mm

640mm*640mm

576mm*576mm

Module quantity

4*4pcs

4*4pcs

3*3pcs

Cabinet weight

8.5kg

10.5kg

9.2kg

Cabinet material

 Aluminum

 Aluminum

 Aluminum

Display parameter

Pixel density

62500dots/m2

40000dots/m2

27777dots/m2

Brightness

1200 - 1500 cd/m2

1200cd-1500/m2

1200cd-1500/m2

Brightness adjustment

      Automatic 256 levels

 Automatic 256 levels

 Automatic 256 levels

Best view distance

4m~12m

5m~15m

6m~18m

Power(Max/Ave.)

1170W/470W

770W/310W

800W/260W

Scanning method

1/16 scanning

1/16 scanning

1/8 scanning

Driving method

Constant current

View angle(H/V)

120°/120°

Lifetime

100000hours

Frame frequency

60Hz/50Hz

Refresh frequency

600Hz~2000Hz

Gray grade

12bits~16bits

Colors

36bits~48bits

Work temperature

-20~+40℃

Input voltage

AC 110~220V

IP grade (F/B)

IP50/IP20

Control distance

CAT cable: 100m;   Muti-mode fiber:500m;  Single-mode fiber: 15km
